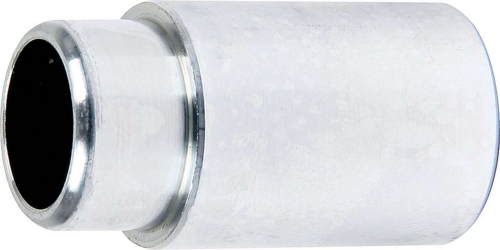

Reducer Spacers 5/8 to 1/2 x 1 Aluminum ALL18617

OVERVIEW

When you''re building a high-performance off-road machine or a precision-tuned street VW, the magic is in the details of your suspension geometry. The ALLSTAR PERFORMANCE Reducer Spacers are an essential component for any fabricator looking to marry 5/8-inch rod ends with 1/2-inch mounting hardware. These aluminum spacers are specifically engineered to slide into the pivot ball of a 5/8-inch heim joint, effectively reducing the internal diameter to accept a standard 1/2-inch bolt. This is a common requirement in custom steering linkages, shift connectors, and suspension stay-rods where you need the robust strength of a larger rod end body but want to utilize more common or existing 1/2-inch chassis brackets. By bridging this gap, you ensure a snug, zero-play fit that is critical for maintaining alignment and preventing the "clunking" associated with mismatched hardware sizes.

Beyond simple diameter reduction, these spacers provide a substantial 1-inch offset, spacing the rod end away from the chassis bracket or mounting surface. This is vital for achieving the necessary clearance for high-articulation suspension setups found on Baja Bugs and long-travel sand rails. These flanged spacers feature a 1-inch outer diameter flange that provides a wide, stable footprint against the rod end ball, ensuring that load is distributed evenly across the bearing surface. Crafted from premium-grade aluminum, these spacers offer a significant weight advantage over steel alternatives without sacrificing the structural integrity required for steering and suspension components. Whether you''re finishing a custom A-arm front end or setting up a complex throttle linkage, these spacers provide the professional-grade finish and exact tolerances that Appletree Auto customers demand for their air-cooled projects.

FITMENT

While these are universal fabrication components, they are most commonly utilized in the following Volkswagen and off-road applications:

• VW Type 1 Beetle: Custom front beam support rods and steering linkage upgrades.
• VW Type 2 Bus: Heavy-duty shift linkage conversions and custom throttle cable guides.
• VW Type 3 Squareback/Fastback: Rear suspension trailing arm adjustments and stabilizer links.
• VW Karmann Ghia: Precision steering rack conversions and tie-rod end adaptations.
• VW Thing (Type 181): Off-road suspension reinforcement and brush guard mounting points.
• Sand Rails & Dune Buggies: Essential for front spindle heim joints and rear radius arm configurations.
• Baja Bugs: High-clearance shock mounts and steering stabilizer kits.
• Custom Tube Chassis: Any application utilizing 5/8-inch rod ends with 1/2-inch mounting tabs.

SPECS

• Material: High-Strength Lightweight Aluminum
• Rod End Fitment: Designed for 5/8-inch I.D. Rod Ends (Heim Joints)
• Hardware Reduction: Reduces bore to 1/2-inch for standard Grade 8 bolts
• Spacing Length: 1-inch (Distance from rod end ball to mounting bracket)
• Flange Diameter: 1-inch O.D. for maximum bearing support
• Body Diameter: 3/4-inch O.D. to fit standard rod end ball widths
• Quantity: Sold as a Package of 2 Spacers
• Finish: Natural Machined Aluminum
• Manufacturer Part Number: ALL18617

PRO TIPS

Tip 1: Maximize Your Misalignment Angles

One of the primary reasons we use these flanged spacers in the VW world is to increase the "misalignment angle" of the heim joint. When a rod end is bolted directly between two flat tabs, its range of motion is severely limited before the housing hits the bracket. By using these 1-inch spacers, you move the pivot point away from the bracket, allowing the rod end to rotate much further. This is absolutely critical for long-travel rear suspension setups on woods buggies where the trailing arms move through a massive arc. Always cycle your suspension through its full range of motion on the lift to ensure the rod end housing doesn''t bind against the spacer flange at full droop or full compression.

Tip 2: Use High-Quality Grade 8 Hardware

Since you are reducing the bolt size from 5/8-inch down to 1/2-inch, you must compensate for the smaller diameter by using the highest quality hardware available. We always recommend using Grade 8 or higher bolts with fine threads for these applications. Because these spacers are 1 inch long, they increase the leverage applied to the mounting bolt (the "shear" load). Ensure your bolts are long enough to pass through the bracket, the spacer, the rod end, the second spacer (if applicable), and the other side of the bracket, with at least two or three threads showing past the nylon locking nut. Never use "all-thread" bolts in these applications; the shank of the bolt should be the only part contacting the inside of the spacer.

Tip 3: Prevent Galvanic Corrosion

When you are mating aluminum spacers with steel rod ends and steel bolts, especially in an off-road environment where moisture and salt might be present, you run the risk of galvanic corrosion. This can cause the spacer to "seize" onto the bolt or inside the rod end ball. During assembly, we highly recommend applying a thin layer of anti-seize lubricant to the shank of the bolt and the outer surface of the spacer that slides into the rod end. This ensures that when it comes time for maintenance or to replace a worn heim joint, the assembly comes apart easily without the need for a torch or a hydraulic press. It''s a small step during the build phase that saves hours of frustration down the road.
