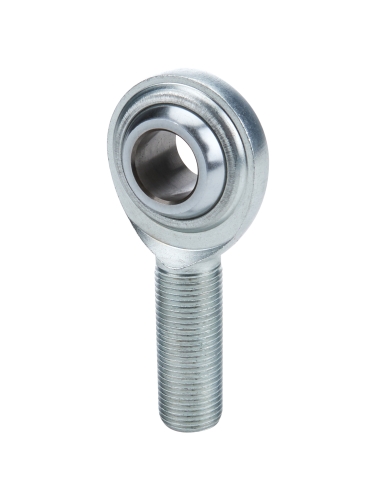

Rod End RH 5/8 Male Steel ALL58010

OVERVIEW

When you are building a high-performance air-cooled machine, whether it is a rugged Baja Bug, a lightweight sandrail, or a precision-tuned street rod, the integrity of your linkage and suspension components is non-negotiable. The ALLSTAR PERFORMANCE Rod End RH 5/8 Male Steel (ALL58010) is a professional-grade Heim joint designed to replace sloppy, compliant rubber bushings with a rigid, high-articulation pivot point. In the world of VW fabrication, these rod ends are the gold standard for creating custom steering tie rods, shift linkages, and suspension stay-bars. By utilizing a 5/8-inch male thread, this rod end provides the structural cross-section necessary to withstand the lateral forces and vibrational harmonics common in off-road racing and aggressive street driving. Unlike generic hardware-grade pivots, the Allstar Standard Series is engineered with tight tolerances to ensure that your steering remains crisp and your suspension geometry stays true under heavy load.

Precision fabrication is at the heart of every great Volkswagen build, and the ALL58010 offers the versatility that master builders demand. This right-hand thread male rod end is frequently paired with its left-hand counterpart to create adjustable turnbuckle assemblies, allowing for "on-the-car" alignment and length adjustments without the need to disassemble the entire linkage. The high-strength steel construction ensures longevity even in the harsh, grit-filled environments of the desert or the dunes. At Appletree Auto, we know that a single failure in a steering linkage can end your weekend early, which is why we recommend these Allstar rod ends for their proven track record in the racing community. Whether you are bracing a transaxle, building a custom throttle pivot, or reinforcing a front beam, this 5/8-inch Heim joint provides the mechanical advantage and durability required for a "build it once, build it right" philosophy.

FITMENT

While this is a universal fabrication component, it is most commonly utilized in the following air-cooled and off-road applications:

• Volkswagen Beetle (All Years): Custom steering linkages and tie rod conversions.
• Baja Bug Conversions: Suspension limit straps and heavy-duty steering rods.
• Sand Rails & Dune Buggies: Shift linkages, throttle pivots, and radius arms.
• VW Type 2 Bus: Custom drag links and heavy-duty steering stabilizers.
• Karmann Ghia: Performance suspension upgrades and custom sway bar end links.
• Meyer''s Manx & Kit Cars: Chassis bracing and adjustable link pins.
• Custom Tube Chassis: Any application requiring a 5/8-inch pivot point with right-hand threads.

SPECS

• Brand: Allstar Performance
• Part Number: ALL58010
• Thread Diameter: 5/8 Inch
• Thread Pitch: 5/8-18 (Fine Thread)
• Thread Direction: Right Hand (RH)
• End Type: Male
• Material: High-Strength Carbon Steel
• Ball Bore: 0.625 Inches (5/8")
• Housing Type: Standard Series Two-Piece Design
• Finish: Protective plating for corrosion resistance
• Weight: Approximately 0.36 lbs

PRO TIPS

1. Use High-Misalignment Spacers for Maximum Travel

If you are using these rod ends in a long-travel suspension setup on a Baja or Rail, remember that the physical housing of the rod end can limit the "swing" or angle of the bolt passing through the ball. To solve this, always install high-misalignment spacers. These spacers reduce the bolt size slightly but allow the ball to rotate much further before the bolt hits the edge of the steel housing. This prevents "binding," which is the leading cause of snapped rod end shanks in off-road environments. Always cycle your suspension fully through its travel to ensure the housing never makes contact with the mounting bracket.

2. Proper Jam Nut Tension and Thread Engagement

Safety is paramount when using male rod ends in steering or suspension components. When installing the ALL58010, ensure that you have a minimum thread engagement equal to 1.5 times the diameter of the shank. For a 5/8-inch rod end, this means you should have at least 15/16 of an inch of thread inside your bung or adjuster sleeve. Additionally, always use a dedicated Right-Hand Jam Nut to lock the position. A loose rod end will vibrate, quickly destroying the threads in your expensive chromoly tie rods or suspension arms. Check your jam nuts for tightness after every race or long weekend in the dirt.

3. Maintenance in Dusty Environments

Steel-on-steel rod ends like the ALL58010 are incredibly strong, but they are susceptible to wear if dirt and grit get trapped inside the race. In the air-cooled VW world, we are often playing in the sand and mud. To extend the life of your Heim joints, avoid using heavy greases that attract and hold abrasive grit. Instead, use a dry-film lubricant or a specialized rod end cleaner. If you are running these on a daily driver or a mud-dwelling Baja, consider using "Rod End Boots" or rubber seals. These simple covers keep the debris out of the precision ball joint, preventing the "squeak" and "clunk" that occurs once the tolerances begin to widen from internal abrasion.
