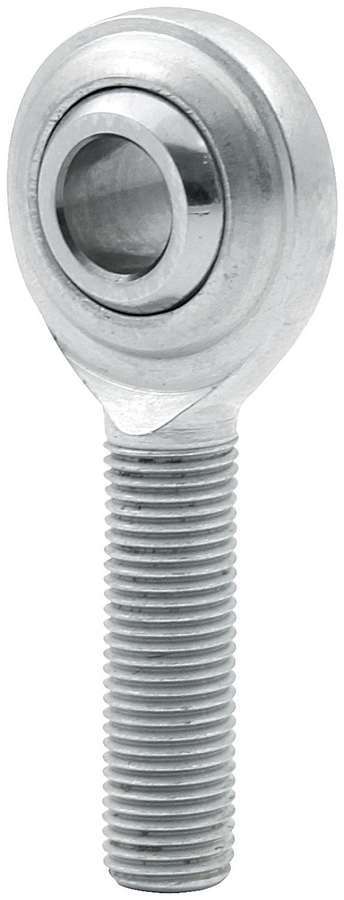

Rod End RH 5/16 Male Steel ALL58005

OVERVIEW

When it comes to fine-tuning the mechanical precision of your air-cooled Volkswagen, every connection point matters. The Allstar Performance 5/16-inch Male Steel Rod End (Part ALL58005) is an essential component for builders who refuse to settle for the "slop" found in aging factory linkages. Whether you are synchronizing a set of dual Weber carburetors on a high-performance Beetle or fabricating a custom shift linkage for a rugged sand rail, this right-hand thread rod end provides the rigid, low-friction pivot point required for tactile feedback and reliable operation. Unlike standard rubber bushings that deflect under pressure, these steel heim joints offer a direct mechanical link, ensuring that every movement of your foot or hand is translated accurately to the engine or transaxle without lag or inconsistency.

Constructed from high-grade carbon steel, this standard-series rod end is designed to withstand the harsh environments typical of the VW scenefrom the dusty trails of a Baja excursion to the heat-soaked engine bays of a daily driver. The 5/16-inch sizing is a "sweet spot" for Volkswagen enthusiasts, offering the perfect balance between lightweight design and the structural integrity needed for throttle assemblies, clutch linkages, and light-duty support rods. Allstar Performance has a long-standing reputation in the racing world for manufacturing components that offer professional-grade durability at an accessible price point. By integrating these rod ends into your build, you are not just replacing a part; you are upgrading the mechanical soul of your machine to a standard that factory components simply cannot match.

FITMENT

This 5/16-inch Male Steel Rod End is a universal fabrication component frequently utilized in the following air-cooled Volkswagen and off-road applications:

• VW Type 1 Beetle / Bug: Ideal for custom dual-carburetor throttle linkages (Weber, Dellorto, Kadron).
• VW Type 2 Bus / Transporter: Used in modified shift rod connections and custom throttle cable adapters.
• VW Type 3 (Squareback, Fastback, Notchback): Applicable for specialized engine cooling flap linkages and throttle repairs.
• VW Type 181 Thing: Excellent for ruggedizing the throttle and shift mechanisms for off-road use.
• Karmann Ghia: Fits precision throttle linkage upgrades for performance-tuned engines.
• Sand Rails & Dune Buggies: The industry standard for throttle pedals, shift linkages, and light-duty steering stabilizer rods.
• Baja Bugs: Essential for custom-fabricated components where stock rubber bushings fail due to extreme vibration.

SPECS

Detailed technical specifications for the ALL58005 Rod End:

• Thread Size: 5/16-inch - 24 (Fine Thread).
• Thread Gender: Male.
• Thread Direction: Right Hand (RH).
• Bore Diameter: 5/16-inch.
• Material: High-strength Carbon Steel.
• Finish: Protective coating for corrosion resistance.
• Series: Standard Duty Performance.
• Ball Material: Heat-treated steel for maximum wear resistance.
• Static Load Rating: Engineered for throttle, shift, and light-duty mechanical linkages.

PRO TIPS

1. The Secret to Turnbuckle Adjustment

If you are building a custom linkage rod, always remember that you should pair this Right-Hand (RH) thread rod end with a Left-Hand (LH) thread rod end on the opposite side of the tube. This creates a "turnbuckle" effect, allowing you to lengthen or shorten your linkage simply by rotating the center rod. This is absolutely critical for synchronizing dual carburetors on a VW engine, as it allows for micro-adjustments without having to pop the rod ends off their mounting studs every time you need to adjust the idle or WOT (Wide Open Throttle) position.

2. Prevent Binding with Proper Alignment

One of the most common mistakes in VW fabrication is mounting rod ends at an angle that exceeds their maximum misalignment capability. When installing the ALL58005, ensure that the rod is as perpendicular to the mounting bolt as possible at the center of its travel. If your linkage binds at the end of its stroke, it will put immense stress on the threads and the ball race, leading to premature failure or a "stuck" throttle. Always use high-quality spacers or "high-misalignment" washers if your application requires the rod to operate at an aggressive angle.

3. Maintenance for Longevity

While these steel rod ends are incredibly tough, they are susceptible to grit and grime, especially in the exposed engine bays of Baja Bugs or Sand Rails. We recommend a dry-film lubricant rather than a heavy grease, as grease tends to attract sand and dirt which acts like sandpaper inside the ball race. Periodically check your jam nuts to ensure they haven''t vibrated loose. A loose jam nut is the leading cause of stripped threads on the rod end body because it allows the threads to "chatter" within the linkage tube under load.
