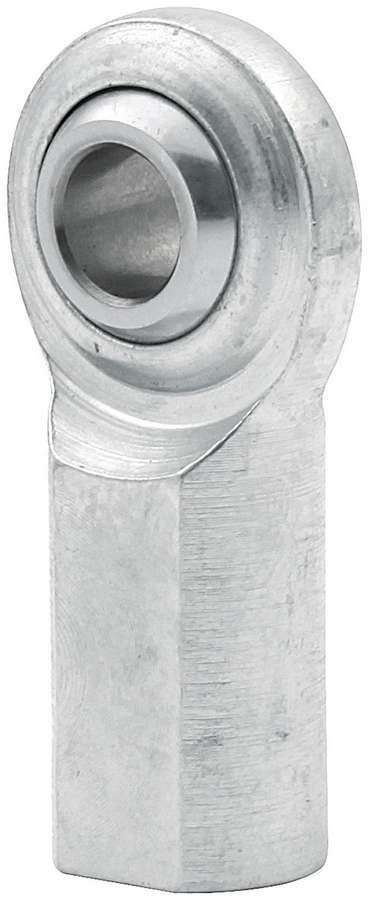

Rod End RH 5/16 Female Steel ALL58035

OVERVIEW

When it comes to dialing in the precision of your air-cooled VW''s mechanical linkages, the Allstar Performance ALL58035 5/16-24 Female Right Hand Steel Rod End stands as an essential component for fabricators and racers alike. In the world of vintage Volkswagens, factory throttle and shift linkages are notorious for developing "slop" over decades of use, leading to inconsistent engine response or missed shifts. By integrating these high-quality steel Heim joints into your custom build, you effectively eliminate the play associated with old-fashioned Z-bars and plastic bushings. Whether you are building a custom dual-carburetor linkage for a set of Weber IDFs on a high-performance Type 1 engine or setting up a precise throttle cable interface on a mid-engine sand rail, this rod end provides the rigid, smooth-pivoting connection required for professional-grade results.

Constructed from premium steel as part of Allstar''s Standard Series, this rod end is designed to withstand the vibrations and environmental stresses common in both street performance and off-road applications. The 5/16-24 right-hand female thread is a industry standard, making it incredibly easy to find matching threaded rod or studs for your specific geometry requirements. For the Baja Bug enthusiast or the weekend drag racer, the durability of steel ensures that your linkage won''t flex or fail under high-stress Wide Open Throttle (WOT) conditions. Don''t settle for inferior hardware when the reliability of your throttle return or shift selection is on the line; trust the brand that professional chassis builders rely on to keep their machines running tight and responsive.

FITMENT

While this is a universal fabrication component, it is most commonly utilized in the following air-cooled VW and off-road applications:

• Volkswagen Type 1: Beetle, Bug, and Super Beetle (Custom throttle and carburetor linkages).
• Volkswagen Type 2: Bus, Transporter, and Kombi (Custom shifting and accelerator rod upgrades).
• Volkswagen Type 3: Fastback, Squareback, and Notchback (Throttle cable conversions).
• Karmann Ghia: Precision throttle linkage for dual-carburetor setups.
• VW-Based Sand Rails & Dune Buggies: Ideal for throttle, shift, and light-duty steering stabilizer linkages.
• Baja Bugs: Rugged enough for exterior mechanical linkages and throttle pivots.
• Custom Fabrication: Any application requiring a 5/16-24 RH female attachment point.

SPECS

• Brand: Allstar Performance
• Part Number: ALL58035
• Thread Size: 5/16"-24
• Thread Gender: Female
• Thread Direction: Right Hand (RH)
• Material: High-Strength Steel
• Series: Standard Series
• Finish: Natural Steel / Zinc Plated
• Bore Diameter: 5/16 Inch
• Weight: Approximately 0.12 lbs

PRO TIPS FROM THE SHOP

1. Use Jam Nuts for Vibration Resistance

In a high-vibration environment like an air-cooled VW engine bay, threads have a tendency to "walk" or loosen over time. Always utilize a 5/16-24 jam nut against the base of the female rod end once your length is set. This creates a mechanical lock that prevents the rod end from rotating on the shaft, ensuring your carburetor synchronization or shift indexing stays exactly where you set it. If you are building a linkage with rod ends on both sides, remember that a Right Hand (RH) thread requires a standard clockwise motion to tighten, whereas a Left Hand (LH) thread would be the opposite.

2. Check for Mechanical Binding and Clearance

When installing the ALL58035 on a carburetor linkage, it is critical to cycle the linkage through its full range of motion from idle to Wide Open Throttle. Steel rod ends have a specific "misalignment angle" limit. If the rod is forced beyond this angle, the ball will bind against the housing, which can lead to a stuck throttle or a snapped linkage rod. If you find the angle is too steep, consider using a high-misalignment spacer or re-positioning your linkage geometry to ensure the pivot remains fluid and unobstructed throughout the entire stroke.

3. Maintenance in Dusty Environments

If you are using these rod ends on a Baja Bug or a Sand Rail, they will be exposed to significant amounts of dirt, sand, and silt. While these steel rod ends are incredibly tough, fine grit can act as an abrasive inside the race. We recommend keeping the ball and race clean and using a "dry" lubricant (like a PTFE or Graphite spray) rather than a heavy grease. Heavy grease tends to trap sand, creating a grinding paste that accelerates wear. For maximum longevity in extreme off-road conditions, consider using a rod end boot to seal out the elements entirely.
