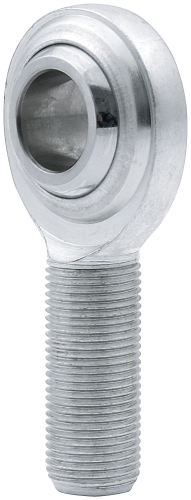

Rod End RH 3/4 Male Oversize Steel ALL58013

OVERVIEW

When you are pushing your air-cooled VW or custom sand rail to the absolute limit in the dunes or across punishing desert terrain, your suspension and steering components are the only things keeping you in control. The Allstar Performance ALL58013 Rod End is engineered for the serious fabricator who refuses to compromise on strength. This 3/4-inch Right Hand (RH) male rod end, often referred to as a heim joint, features an oversize design that provides a significantly larger body and bearing surface than standard 3/4-inch joints. This extra mass is critical for high-stress applications like heavy-duty tie rods, radius arms, and trailing arm supports where standard hardware might succumb to the sheer force of off-road impacts. By utilizing a heat-treated steel construction, Allstar ensures that these joints can withstand the lateral loads and vibrations inherent in performance Volkswagen builds.

As a specialist in the air-cooled world, I know that "good enough" usually ends in a broken car and a long walk back to the trailer. That is why we recommend the ALL58013 for custom fabrication projects that demand a "bulletproof" link. Whether you are building a long-travel Baja Bug, a tube-chassis Manx, or a high-horsepower sand rail, these rod ends provide the articulation and durability needed to keep your geometry consistent under fire. The oversize steel housing offers superior thread engagement and resistance to stretching, making it a favorite for steering systems where precision is paramount. When you invest in Allstar Performance hardware from Appletree Auto, you are choosing a component that has been proven in the dirt, on the track, and everywhere in between. Don''t settle for inferior, non-rated joints when your safety and performance are on the line.

FITMENT

While the ALL58013 is a universal fabrication component, it is most commonly utilized in the following air-cooled and off-road applications:

• VW Baja Bug: Custom heavy-duty steering linkages and front beam supports.
• Sand Rails & Dune Buggies: Ideal for tie rods, shift linkages, and rear suspension radius rods.
• Custom VW Beetle (1950-1979): Highly modified street and strip cars requiring adjustable suspension points.
• Meyer''s Manx & Fiberglass Buggies: Perfect for upgrading thin-wall steering components to professional-grade hardware.
• Off-Road Racing Chassis: Suitable for Class 5, Class 11, and custom tubular chassis builds.
• General Fabrication: Any application requiring a 3/4-inch right-hand thread male connection with maximum load capacity.

SPECS

• Brand: Allstar Performance
• Part Number: ALL58013
• Thread Size: 3/4 inch - 16 (Fine Thread)
• Thread Direction: Right Hand (RH)
• Type: Male Oversize
• Material: Heat-Treated Alloy Steel
• Finish: Zinc Plated for superior corrosion and rust resistance
• Ball Bore: 3/4 inch ID
• Housing Width: Oversized for increased tensile strength and durability
• Application: Steering, Suspension, and Linkage fabrication
• Weight: Approximately 0.57 lbs

PRO TIPS

1. Proper Thread Engagement and Jam Nuts

When installing the ALL58013, the "Golden Rule" of fabrication is to ensure you have at least 1.5 times the diameter of the shank in thread engagement inside your bung or tube. For a 3/4-inch rod end, this means you should have at least 1-1/8 inches of thread safely tucked into the link. Always use a high-quality jam nut to lock the joint in place. Without a jam nut, the constant vibration of an air-cooled engine and off-road terrain will cause the threads to chatter, eventually leading to "egging out" the threads or complete failure of the link. If you are building a steering link, we recommend using a Right Hand (RH) joint on one end and a Left Hand (LH) joint on the other so you can adjust the length without disconnecting the hardware.

2. Maximize Articulation with Misalignment Spacers

A common mistake in VW suspension design is mounting the rod end directly against a flat bracket or using a standard bolt that limits the "swing" or pivot of the ball. To get the most out of these 3/4-inch rod ends, you should utilize high-misalignment spacers. These spacers reduce the bolt hole size (typically down to 5/8-inch or 1/2-inch) but allow the ball to rotate much further before the housing hits the mounting tab. This is especially critical on long-travel front ends where the steering or suspension arms need to move through a wide arc. Without these spacers, you risk "binding" the joint, which will snap the shank of the rod end like a twig the moment your suspension hits full droop or compression.

3. Maintenance in Sandy and Dusty Environments

While these steel rod ends are incredibly tough, they are susceptible to wear if neglected in the sand. Fine silica acts like sandpaper inside the race of the joint. After a weekend at the dunes, don''t just spray them with a heavy, sticky grease that will attract more dirt. Instead, clean them thoroughly with a dry solvent and apply a "dry" PTFE or silicone-based lubricant. These lubricants provide the necessary slickness for the ball to rotate freely without creating a "grinding paste" that eats away at the bearing surface. If you notice any lateral play or "slop" in the ball when you shake the steering wheel, it is time to replace the joint immediately to maintain your vehicle''s safety and alignment.
