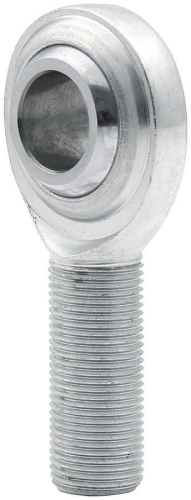

Rod End LH 3/4 Male Steel ALL58022

OVERVIEW

When it comes to building a rugged off-road machine or a high-performance street-legal air-cooled classic, the strength of your suspension and steering components is non-negotiable. The Allstar Performance ALL58022 Rod End is a heavy-duty, standard-series steel heim joint designed to withstand the brutal vibrations and high-load cycles common in sand rails, Baja Bugs, and custom tube-chassis race cars. Crafted from high-quality carbon steel, this male rod end provides the essential pivot point needed for articulated movement without the slop associated with traditional rubber bushings. Whether you are navigating the deep ruts of a desert trail or fine-tuning the geometry of a custom-built A-arm suspension, this component ensures that your steering inputs are translated directly to the wheels with precision and reliability. At Appletree Auto, we know that a single failure in the field can end your day, which is why we stock professional-grade hardware like this Allstar unit to keep your VW-based project moving forward.

This specific rod end features a 3/4-inch left-hand thread, making it a critical component for creating adjustable linkages. By pairing a left-hand thread rod end on one side of a link with a right-hand thread on the other, you gain the ability to adjust the overall length of the rodand thus your alignment settingswithout ever having to disconnect the joint. This is a game-changer for setting toe-in on a steering rack or adjusting the preload on a rear trailing arm. The 3/4-inch bore is perfectly sized for substantial mounting bolts, providing the shear strength necessary for high-impact landings and heavy torque loads. Finished with a protective coating to resist corrosion and featuring a heat-treated ball for reduced wear, the ALL58022 is the workhorse of the fabrication world. Don''t settle for inferior hardware when you can install a component that is engineered to handle the unique demands of the air-cooled performance community.

FITMENT

While this is a universal fabrication component, it is most commonly utilized in the following air-cooled VW and off-road applications:

• VW Beetle / Bug: Used in custom Baja suspension conversions and heavy-duty tie rod assemblies.
• Sand Rails & Dune Buggies: Ideal for shift linkages, steering rods, and radius arms on Chenowth, Berrien, and custom frames.
• VW Karmann Ghia: Application in specialized drag racing steering setups.
• VW Type 3 (Squareback/Fastback): Custom rear suspension geometry modifications.
• Manx-Style Buggies: Essential for high-clearance steering upgrades.
• Off-Road Race Trucks: Fits various throttle linkages and support struts.

SPECS

• Part Number: ALL58022
• Thread Size: 3/4-inch - 16
• Thread Gender: Male
• Thread Direction: Left Hand (LH)
• Bore Diameter: 3/4-inch
• Material: Carbon Steel Body
• Ball Material: Heat-treated Steel for maximum durability
• Series: Standard Series Performance
• Finish: Protective plating for corrosion resistance
• Load Capacity: Engineered for high-stress suspension and steering loads

PRO TIPS

1. Always Use High-Quality Jam Nuts

When installing the ALL58022, it is absolutely vital to use a dedicated 3/4-inch left-hand thread jam nut. A common mistake builders make is forgetting that the jam nut provides the actual locking force that prevents the rod end from rotating within the tube adapter or threaded rod. Without a properly torqued jam nut, the threads can experience "micro-movement," which leads to thread galling and eventually catastrophic failure of the linkage. Ensure the nut is tightened against the rod or adapter body to create a rigid assembly that won''t vibrate loose during high-speed desert runs or technical crawling.

2. Proper Lubrication and Maintenance

Because these are steel-on-steel standard series rod ends, they require regular inspection and maintenance to ensure a long service life. In the dusty environments where air-cooled Volkswagens thrive, grit can act as an abrasive between the ball and the race. We recommend using a high-quality dry film lubricant rather than a heavy grease, as grease tends to attract and hold sand. Periodically clean the joint with a brush and re-apply lubricant. If you notice any vertical play or "knocking" within the joint, it is time to replace it to maintain your vehicle''s handling precision and safety.

3. Account for Angularity and Clearance

When designing your suspension or steering geometry, always check the "misalignment angle" of the rod end. While heim joints allow for significant rotation, they do have a physical limit where the edge of the ball housing will contact the mounting bracket or the bolt. To maximize the range of motion, we strongly suggest using misalignment spacers. These spacers fit into the 3/4-inch bore and reduce the bolt size slightly while providing a "stand-off" distance that allows the rod end to pivot much further before binding. This is especially important on long-travel VW front ends where the tie rods must move through a wide arc without hitting the spindles or the frame horns.
