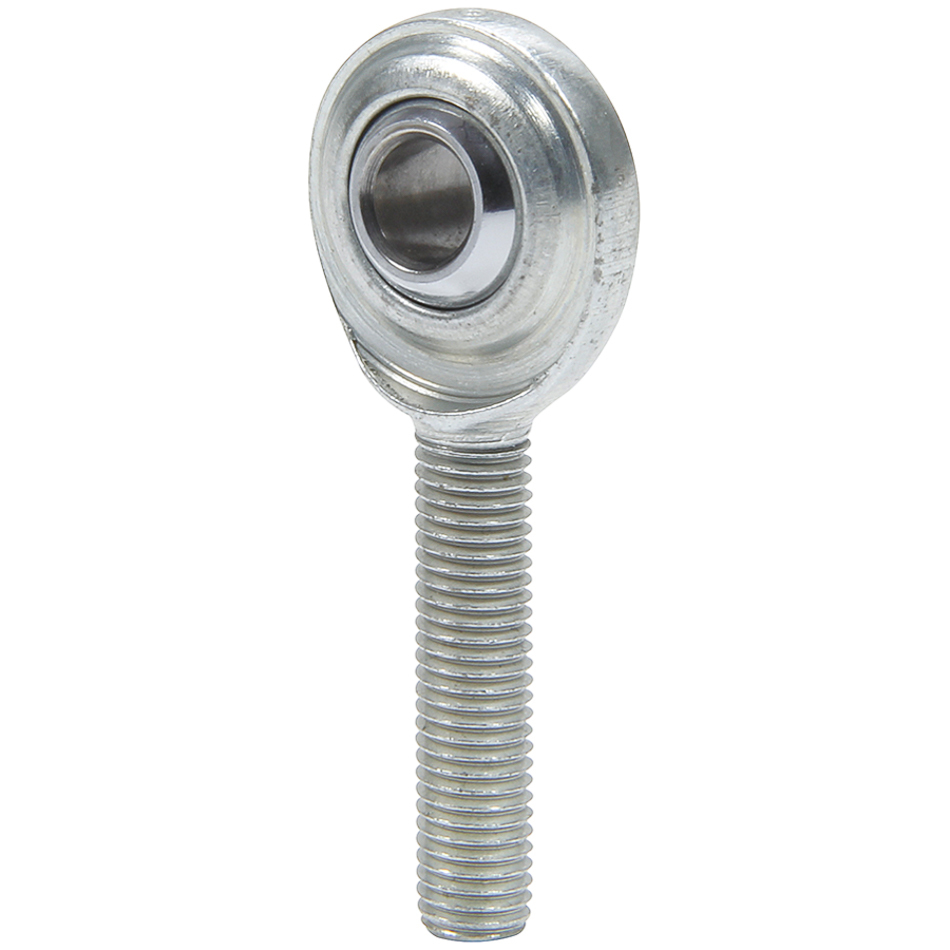

Rod End LH 1/4 Male Steel ALL5

Precision Engineering for Your Custom VW Linkage

When you''re dialing in the performance of your air-cooled Volkswagen, every millimeter of travel in your linkage counts. The Allstar Performance 1/4-inch Left Hand Male Steel Rod End is a professional-grade component designed to eliminate the slop and inconsistency found in factory stamped-steel linkages or worn-out plastic sockets. Whether you are building a custom throttle arrangement for a set of dual Weber 44 IDFs or engineering a precise shift mechanism for a high-performance sand rail, this heim joint provides the rigid connection and smooth articulation required for millisecond response times. Built from high-quality steel with a two-piece design, this rod end features a pivoting steel ball that offers a wide range of motion without the binding common in inferior hardware. At Appletree Automotive, we know that the difference between a winning pass and a frustrating breakdown often comes down to the quality of your small-bore hardware, and Allstar Performance delivers the reliability that seasoned VW builders demand.

This specific rod end is a Left Hand (LH) thread, which is an essential component for any adjustable turnbuckle-style linkage. By pairing this LH male rod end with a standard Right Hand (RH) rod end on a single threaded rod, you gain the ability to adjust the overall length of your linkage simply by rotating the rod itself. This eliminates the need to disconnect the linkage from the carburetor or throttle arm every time you need to sync your carbs or adjust your pedal travel. The steel-on-steel construction ensures maximum durability against the heat of the engine bay and the vibration inherent in the flat-four Boxer engine design. Don''t settle for "good enough" when it's time to fabricate your control systems; use the same components that professional off-road racers and drag strip veterans rely on to keep their machines running at peak efficiency.

Vehicle Fitment & Application

While this is a universal fabrication component, it is most commonly utilized in the following air-cooled VW and off-road applications:

• VW Beetle (All Years): Perfect for custom throttle linkages and dual carburetor sync bars.
• VW Karmann Ghia: Ideal for precision throttle cable terminations and custom pedal assemblies.
• VW Bus (Type 2): Used in extended throttle linkages for campers and high-roof models.
• VW Type 3 (Squareback/Fastback): Excellent for tight-clearance engine compartments.
• Dune Buggies & Sand Rails: A staple for throttle linkages, shift gates, and light-duty control rods.
• Custom Fabrication: Fits any 1/4-28 LH internal thread application or threaded hex bar.

Technical Specifications

• Thread Size: 1/4 inch - 28 (Fine Thread).
• Thread Direction: Left Hand (LH) Male.
• Construction Style: Two-piece design for maximum strength.
• Material: High-tensile strength steel body and ball.
• Finish: Protective coating for corrosion resistance in harsh environments.
• Ball Bore: 1/4 inch (accepts 1/4" bolt or pin).
• Weight: Approximately 0.08 lbs.
• Manufacturer Part Number: ALL58014.

Pro Tips From The Appletree Bench

Tip 1: The Turnbuckle Advantage

To make your life significantly easier during engine tuning, always use one Left Hand (LH) rod end and one Right Hand (RH) rod end on your connecting rods. This creates a "turnbuckle" effect. When you rotate the center hex bar or tube, both ends will either move inward or outward simultaneously. This allows for ultra-fine adjustments to your carburetor synchronization or throttle plate positioning without ever having to remove a single cotter pin or bolt. It''s the secret to a perfectly balanced dual-carb setup.

Tip 2: Prevent Binding with Proper Spacing

When mounting this rod end to a throttle arm or a pivot point, ensure that the body of the rod end doesn''t "bottom out" against the mounting surface during its full range of motion. We highly recommend using small high-misalignment spacers or even a simple AN washer on either side of the ball. This ensures the steel ball can pivot freely through its entire arc, preventing the linkage from binding or bending under high-RPM vibrations or heavy pedal pressure.

Tip 3: Maintenance in Dusty Environments

Because these are steel-on-steel two-piece rod ends, they are incredibly tough but can be sensitive to grit if you are running in the dunes or on dirt tracks. We recommend using a "dry" PTFE-based lubricant rather than a heavy grease. Grease tends to attract sand and dirt, creating an abrasive paste that will prematurely wear out the ball socket. A quick spray of dry lube keeps the action smooth and helps flick away debris, ensuring your throttle never sticks open during a run.
