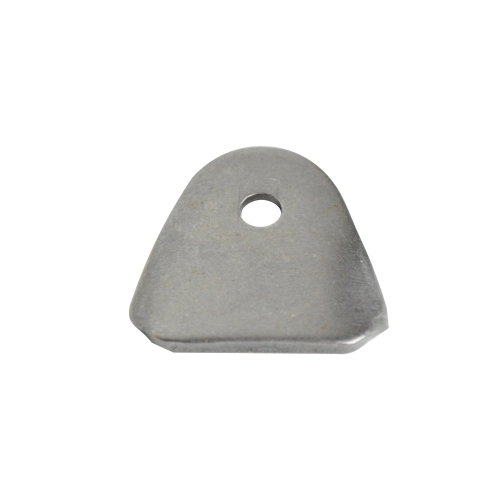

Body Tab 1/4 Hole Chromoly

High-Performance Fabrication with A&A Manufacturing Chromoly Body Tabs

When you are building a high-performance off-road machine, every weld and every bracket matters. The A&A Manufacturing 1/4-inch hole Chromoly body tab is designed for the serious fabricator who demands extreme strength without the unnecessary bulk of traditional mild steel. Chromoly (4130) offers a significantly higher strength-to-weight ratio, making these tabs the premier choice for mounting critical components on your sand rail, Baja Bug, or custom tube chassis. Whether you are securing aluminum body panels that need to withstand high-speed vibrations or mounting internal accessories like fuel pumps or ignition boxes, these tabs provide the structural integrity required to keep your project together under the harshest desert conditions. At Appletree Auto, we know that the difference between a professional-grade build and a weekend project often comes down to the quality of your fabrication hardware.

These tabs are precision-engineered to save you hours of tedious time behind the bench grinder or drill press. Instead of hand-cutting and drilling individual pieces that may lack consistency, you can rely on the uniform precision of these A&A Manufacturing components. The 1/8-inch thickness provides an ideal surface area for a deep, penetrating TIG or MIG weld onto your 4130 tubing, ensuring that once it''s attached, it stays attached through the roughest whoops and jumps. The 1/4-inch pre-drilled hole is perfectly sized for standard hardware, making it versatile for everything from dzus fastener plates to wiring looms and brake line clips. If you are aiming for a world-class finish on your air-cooled VW project or dedicated off-road race car, utilizing dedicated Chromoly tabs demonstrates a commitment to engineering excellence that standard steel simply cannot match.

Universal Fitment and Application Guide

While these tabs are universal in nature for fabrication, they are most commonly utilized in the following air-cooled VW and off-road applications:

• VW-Based Sand Rails: Perfect for mounting body skins, floor pans, and dash panels.
• Baja Bugs: Essential for custom roll cage accessories and exterior light bar mounts.
• Dune Buggies: Ideal for securing wiring harnesses and fuel line clamps to the chassis.
• Meyers Manx & Clones: Used in frame shortening and reinforcement projects.
• Off-Road Race Trucks: High-strength mounting points for interior panels and electronics.
• Custom Tube Chassis: Compatible with any 4130 Chromoly or mild steel tubing fabrication.

Technical Specifications

• Manufacturer: A&A Manufacturing
• Part Number: FAB-3121
• Material: 4130 Chromoly Steel (High Tensile Strength)
• Hole Diameter: 1/4 Inch (0.250")
• Material Thickness: 1/8 Inch (0.125")
• Mounting Style: Weld-on
• Sold As: Individually (Each)
• Compatibility: Best suited for TIG welding to Chromoly structures, but compatible with MIG welding.

Expert Pro Tips for the Master Fabricator

1. Mastering the Prep Work for Chromoly Welding

Before you strike an arc, it is absolutely vital to clean the area where the tab will be mounted. Chromoly steel often comes with a thin layer of mill scale or oil to prevent rust. Use a flap disc or a dedicated stainless steel wire brush to clean the tubing and the tab down to bright, shiny metal. If you are TIG welding, wipe both surfaces down with acetone. Any contaminants left on the metal will lead to porosity in the weld, which significantly weakens the mounting point. Because these are 1/8-inch thick, ensure your welder settings are tuned for proper penetration into the chassis tubing to avoid "cold" welds that could snap off under vibration.

2. Using a "Dummy" Bolt for Perfect Alignment

When you are welding multiple body tabs in a row to mount a single panel, alignment is everything. A pro builder''s trick is to use a "dummy" bolt or a piece of 1/4-inch all-thread to link the tabs together before tack welding. This ensures that the holes remain perfectly concentric across the span of the panel. If you weld them one by one without a guide, the heat distortion (warpage) can pull the tabs out of alignment, making it nearly impossible to get your bolts through later. Always tack the tabs in place, double-check your panel fitment, and then finish the final welds in small increments to manage heat soak.

3. Prevent Post-Weld Corrosion Immediately

One characteristic of 4130 Chromoly is that it is more susceptible to surface oxidation than some stainless alloys. Once you have finished welding your tabs and the metal has cooled, don''t leave them bare for long. If your project is going to be a long-term build, apply a "weld-through" primer or a light coat of WD-40 to prevent flash rust. For the final finish, these tabs should be painted or powder-coated along with the rest of the chassis. If you are powder-coating, remember to chase the 1/4-inch hole with a drill bit or a reamer after the coating process to ensure your hardware fits smoothly without chipping the new finish.
