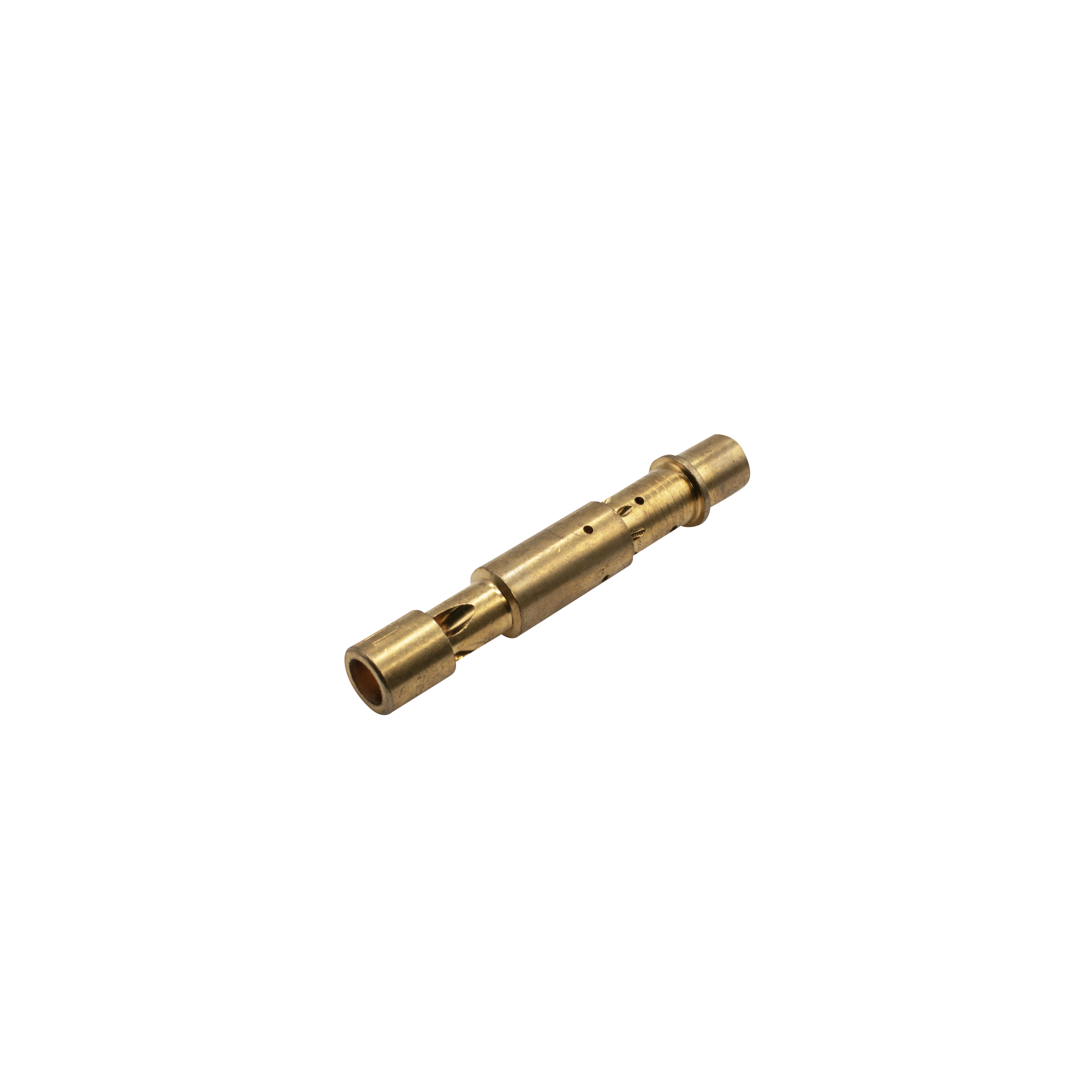

Emulsion Tube, F5, for IDF, HPMX, DCOE DCO, EPC Carbs

OVERVIEW

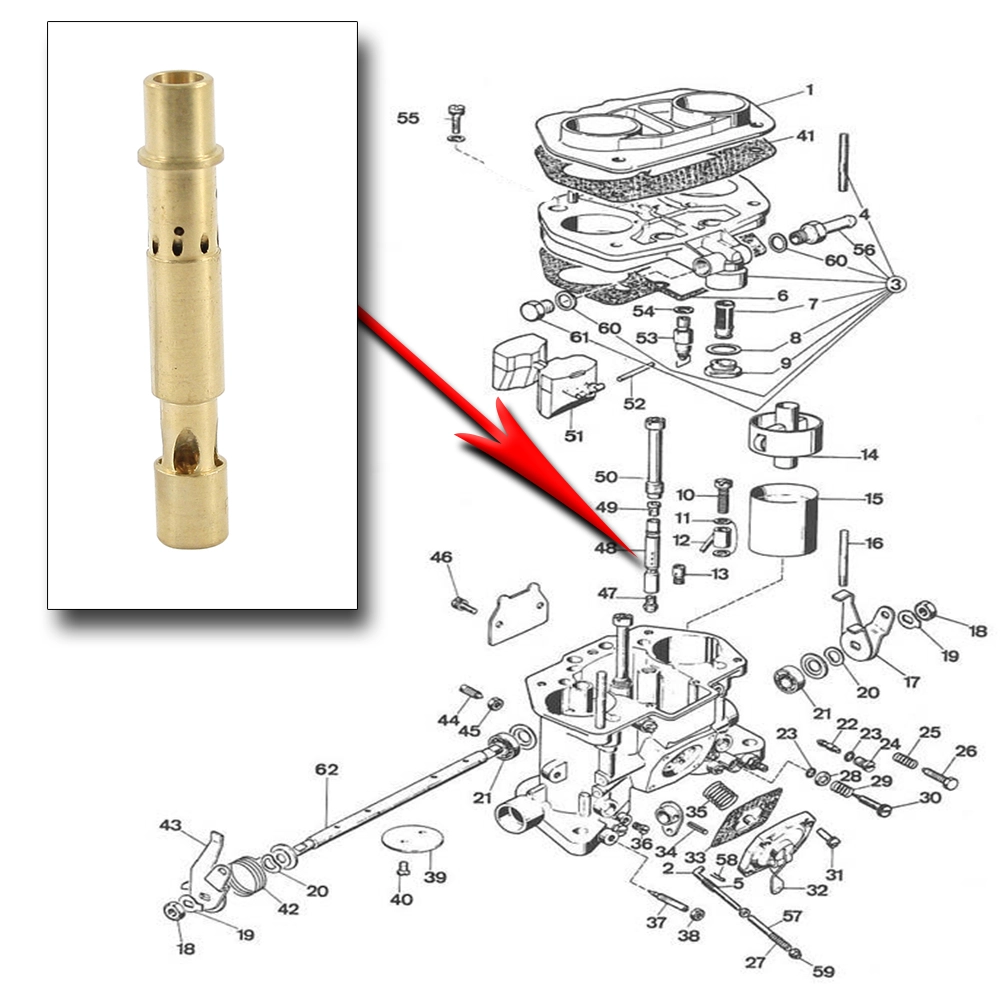

Precision tuning is the difference between a Volkswagen that simply runs and one that screams across the finish line or cruises effortlessly down the highway. The EMPI F5 Emulsion Tube is a critical component for anyone serious about dialing in their Weber IDF, EMPI HPMX, or DCOE series carburetors. As air and fuel enter the main circuit, the emulsion tube is responsible for mixing them into a combustible mist. The F5 profile is specifically engineered to control the timing and volume of air bleed into the fuel well, ensuring that your engine transitions smoothly from the idle circuit to the main jets without the dreaded hesitation or "flat spot" that plagues many dual-carb setups. When you are building a high-performance air-cooled engine, you cannot afford to overlook the subtle nuances of fuel atomization that these precision-machined brass tubes provide.

At Appletree Automotive, we understand that every engine build has unique requirements based on displacement, cam profile, and cylinder head flow. The F5 emulsion tube is a staple for tuners who need a specific enrichment curve during mid-range acceleration. Because these tubes are manufactured to EMPI''s exacting standards, they offer consistent performance across all barrels, which is vital for maintaining synchronized cylinder temperatures and power output. Whether you are refreshing a set of vintage Weber DCOEs on a sand rail or fine-tuning a pair of 44 HPMXs on a 2110cc street-beater, these emulsion tubes provide the mechanical accuracy needed to achieve a perfect stoichiometric ratio. Don''t settle for "close enough" when it comes to your fueling; upgrade to the F5 to unlock the full potential of your induction system.

FITMENT

This F5 Emulsion Tube is designed for use in a wide variety of high-performance carburetors commonly found on air-cooled VW and off-road applications, including:

• Weber Carburetors: IDF Series (40, 44, 48), DCOE Series (40, 42, 45, 48), and DCO Series.
• EMPI Carburetors: HPMX Series (40, 44, 48) and EPC 48/51 Series.
• Vehicle Applications: Volkswagen Type 1 Beetle (1946-1979), Type 2 Bus/Transporter, Type 3 Fastback/Squareback, Karmann Ghia, and VW Thing.
• Custom Builds: Ideal for Dune Buggies, Sand Rails, Manx-style shells, and custom trikes utilizing dual-carburetor or progressive setups.

SPECS

• Emulsion Tube Series: F5 Calibration.
• Material: High-quality, corrosion-resistant precision-machined brass.
• Part Number: 43-5673-0.
• Quantity: Sold individually (Each).
• Function: Controls air/fuel premixing in the main circuit well.
• Weight: 0.1 lbs.
• Compatibility: Interchangeable with original Weber and EMPI components.

PRO TIPS

Pro Tip 1: Solving the Mid-Range Stumble. If your VW experiences a lean stumble or a "bog" when you transition from light throttle to heavy acceleration (usually between 2,500 and 3,500 RPM), your emulsion tubes are likely the culprit. The F5 tube is often used to delay the entry of air into the fuel mix compared to other tubes, which can help richen the mixture during that critical transition period. Always document your current jetting and venturi size before swapping tubes so you can track the specific changes in throttle response.

Pro Tip 2: Maintenance and Cleaning. The tiny orifices on the side of the F5 emulsion tube are calibrated to a fraction of a millimeter. Even a microscopic amount of varnish or debris can disrupt the air-bleed pattern and cause your engine to run unevenly. When cleaning your carbs, never use a metal wire or a drill bit to clear these holes, as you will inadvertently resize them and ruin the calibration. Instead, use a high-quality aerosol carburetor cleaner followed by high-pressure compressed air to ensure every passage is perfectly clear.

Pro Tip 3: Symmetry is Key. When running dual carburetors, it is absolutely imperative that you run the exact same emulsion tube in every barrel. Mixing an F5 with an F11, for example, will cause two cylinders to run at a different air-fuel ratio than the others, leading to uneven power delivery, increased vibration, and potential engine damage due to localized overheating. Always buy your emulsion tubes in matched sets and double-check the stamped "F" number on the side of the tube before installation to ensure total synchronization across your entire intake system.
