Weber IDF Air Jet 160

OVERVIEW

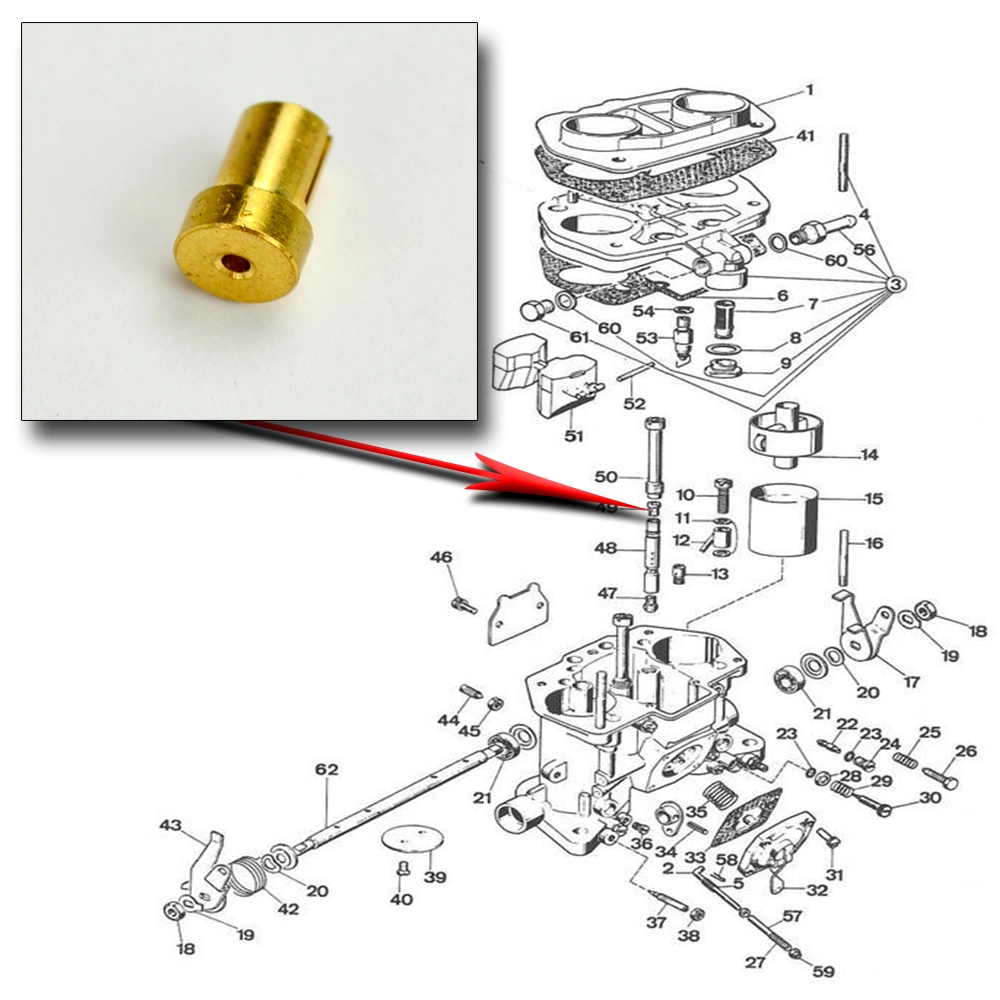

When it comes to dialing in your air-cooled powerplant for maximum efficiency and peak horsepower, every tiny component within your Weber IDF or EMPI HPMX carburetor plays a vital role. The Weber IDF Air Jet 160 is a precision-engineered tuning component designed to control the amount of air that enters the emulsion tube circuit. As a master air-cooled specialist, I can tell you that the air jet is often the most misunderstood part of the carburetor. While the main jet determines the volume of fuel, the air jet acts as a high-speed bleed, emulsifying that fuel and leaning out the mixture as engine RPM increases. If your engine is stumbling at the top of the gear or failing to pull through the high-end power band, swapping to a 160 air jet might be the exact adjustment needed to flatten your fuel curve and achieve that crisp, responsive throttle every VW enthusiast craves.

This specific 160 air jet is crafted from high-quality brass to ensure thermal stability and resistance to modern fuel additives that can often corrode lesser materials. At Appletree Automotive, we understand that "close enough" isn''t good enough for a high-performance Type 1, Type 4, or Porsche engine. Whether you are running a set of dual 40 IDFs on a street-driven 1776cc or pushing a 2276cc monster with 44s or 48s, having a selection of air jets is mandatory for a proper plug read and dyno session. The 160 size is a staple in many baseline tunes, providing a balanced approach for engines that require a moderate amount of air correction to prevent an overly rich condition during high-vacuum, high-RPM operation. Don''t settle for a sluggish top end when a simple, precision-machined jet swap can unlock the true potential of your Weber induction system.

FITMENT

• Volkswagen Type 1: Beetle, Bug, and Super Beetle (All years equipped with Weber IDF or EMPI HPMX carburetors).
• Volkswagen Type 2: Bus, Transporter, and Kombi (1600cc to 2000cc engines with dual IDF/HPMX setups).
• Volkswagen Type 3: Fastback, Squareback, and Notchback.
• Volkswagen Karmann Ghia: All years with upgraded dual IDF carburetion.
• Porsche 356 & 912: Specifically for models converted to Weber IDF series carburetors.
• Sand Rails & Dune Buggies: Any custom air-cooled VW build utilizing the Weber IDF platform.
• EMPI HPMX Series: Fully compatible with all EMPI HPMX 40, 44, and 48mm carburetors.

SPECS

• Product Type: High-Speed Air Correction Jet.
• Jet Size: 160 (1.60mm orifice).
• Material: Precision-machined solid brass for superior longevity.
• Compatibility: Fits Weber IDF, EMPI HPMX, and certain Dellorto DRLA models (verify thread pitch).
• Thread Pattern: Standard Weber IDF air jet threading.
• Application: High-speed circuit air/fuel emulsification.
• Quantity: Sold individually (most dual-carb setups require four per engine).
• Manufacturer: EMPI / Weber Style Performance Parts.

PRO TIPS

1. Master the Relationship Between Main Jets and Air Jets

One of the golden rules in air-cooled VW tuning is understanding the "spread" between your main jet and your air jet. Generally, a larger air jet (like this 160) will lean out the mixture more at high RPMs, whereas a smaller air jet will keep the mixture richer as the engine winds out. If you find that your engine runs perfectly in the mid-range but starts to "nose over" or puff black smoke at 5,000 RPM, you likely need to move to a larger air jet. A common starting point is to have an air jet that is roughly 50 to 60 points larger than your main jet (e.g., a 135 main jet often pairs well with a 180 or 190 air jet), but every engine''s volumetric efficiency is different. Always perform a high-speed "plug chop" to verify your mixture before finalizing your jetting choices.

2. Use Proper Tools to Prevent Brass Damage

Air jets are made of brass, which is a relatively soft metal. It is incredibly easy to "booger up" the flathead slot if you use a screwdriver that is too small or has a rounded tip. I always recommend using a hollow-ground cabinet-tip screwdriver that fits the slot perfectly from edge to edge. This ensures even pressure distribution and prevents metal shavings from falling into the emulsion tube well. If you do happen to mar the jet, replace it immediately. A damaged jet can cause turbulence in the air bleed circuit, leading to inconsistent fueling and "phantom" tuning issues that are a nightmare to diagnose on the road.

3. Cleanliness is Next to Godliness in Carburetion

Even the smallest speck of dust can partially obstruct a 1.60mm hole, completely throwing off your air-to-fuel ratio on one or more cylinders. Whenever you are swapping jets, ensure your workspace is clinical. Before removing the air jets, use a can of compressed air or a dedicated carb cleaner to blow any debris away from the top of the carburetor. After installing your new 160 air jets, double-check that the air filter base and gaskets are sealing perfectly. A tiny air leak or a piece of lint trapped in the jet can cause a high-speed lean condition that could potentially lead to overheated heads or a melted piston in a high-performance air-cooled engine.
