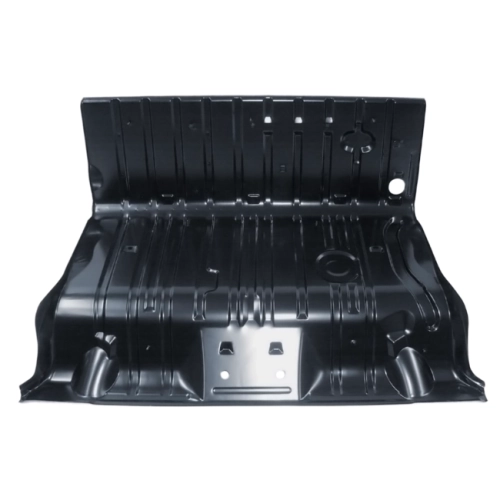

Rear Luggage Tray, For Beetle 54-79

OVERVIEW

When you''re deep into a classic Beetle restoration, the rear luggage tray is one of those critical areas that often reveals hidden nightmares. Over decades, moisture seeps through aging rear window seals or collects under the factory tar-paper insulation, leading to structural rot that compromises the entire rear section of your cabin. This KeyParts Rear Luggage Tray is the definitive solution for air-cooled enthusiasts who refuse to settle for flimsy, ill-fitting patch panels. Engineered with precision to match the original factory contours, this full-replacement tray provides the structural rigidity your Type 1 deserves, ensuring that your interior looks as clean as the day it rolled off the assembly line in Wolfsburg. Whether you''re building a concourse-quality restoration or a rugged daily driver, starting with a solid foundation in the rear luggage area is non-negotiable for a long-lasting project.

Crafted from heavy-duty 19-gauge steel, this luggage tray offers the thickness and durability required for a professional-grade weld-in installation. Unlike thinner alternatives that can warp under the heat of a welder or flex once installed, this KeyParts unit is designed to handle the stresses of the road while providing a perfect surface for your upholstery and sound deadening. The tray features the correct stampings and pressings to mirror the original Volkswagen design, making it virtually indistinguishable from the stock panel once painted and installed. Because this is a large, high-quality steel component weighing in at 27 pounds, it provides the substantial reinforcement needed for the rear firewall and shock tower area. Don''t let a rusted-out rear shelf ruin your interior; upgrade to this restoration-quality tray and do the job right the first time.

FITMENT

This premium rear luggage tray is designed to fit a wide range of air-cooled Volkswagen models. Please verify your specific year and body style below:

• VW Beetle (Sedan & Convertible): 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977
• VW Super Beetle (Sedan & Convertible): 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979
• VW Karmann Ghia: 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974
• VW Thing (Type 181): 1973, 1974

SPECS

Technical specifications for the KeyParts KPVW34001 Luggage Tray:

• Material: 19-Gauge Cold-Rolled Steel
• Finish: Protective EDP (Electrophoretic Deposition) coating to prevent flash rust
• Weight: Approximately 27 lbs
• Installation Type: Weld-in replacement panel
• Compatibility: Designed for Type 1 based chassis
• Manufacturer Part Number: KPVW34001
• Shipping Note: Due to size and weight, this item must ship via freight truck

PRO TIPS

1. Master the Prep for a Seamless Weld

Before you even think about striking an arc, you must ensure that the mating surfaces on your Beetle''s body are stripped to bare, shiny metal. Use a flap disc or a wire wheel to remove all old paint, rust, and factory undercoating from the perimeter where the new luggage tray will sit. Once the metal is clean, apply a high-quality weld-through primer to both the car''s body and the edges of the new tray. This prevents the metal from rusting between the layers where you can''t reach with paint later. Taking the time to prep your surfaces ensures deep weld penetration and a bond that will last another fifty years.

2. Check Your Rear Window Seals Simultaneously

If your original luggage tray rotted out, there is a 99% chance it was caused by a leaking rear window seal. While you have the rear area disassembled for the tray installation, it is the perfect time to inspect the window channel and the seal itself. If the rubber is cracked or hard, replace it with a high-quality German-style seal. If you install this beautiful new steel tray but leave a leaky window seal in place, you''ll be trapping moisture under your new carpet and starting the oxidation process all over again. Always solve the source of the moisture before finishing your metal work.

3. Seal and Soundproof for a Modern Feel

Once the tray is fully welded in and the welds have been ground smooth, don''t just throw a carpet over the bare metal. Use a high-grade automotive seam sealer along all the welded joints to prevent exhaust fumes or moisture from entering the cabin. After the sealer and paint are dry, we highly recommend applying a layer of modern butyl-based sound deadening material. The rear luggage tray sits directly over the engine and transaxle; adding sound insulation here will significantly reduce cabin noise and heat transfer, making your vintage VW feel much more solid and comfortable on long highway drives.
